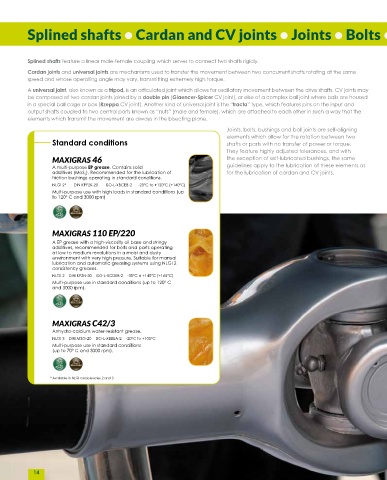

Splined shafts • Cardan and CV joints • Joints • Bolts • Bushings • Ball joints
Splined shafts feature a linear male-female coupling which serves to connect two shafts rigidly.
Cardan joints and universal joints are mechanisms used to transfer the movement between two concurrent shafts rotating at the same
speed and whose operating angle may vary, transmitting extremely high torque.
A universal joint, also known as a tripod, is an articulated joint which allows for oscillatory movement between the drive shafts. CV joints may
be composed of two cardan joints joined by a double pin (Glaencer-Spicer CV joint), or else of a complex ball joint where balls are housed
in a special ball cage or box (Rzeppa CV joint). Another kind of universal joint is the “tracta” type, which features pins on the input and
output shafts coupled to two central parts known as “nuts” (male and female), which are attached to each other in such a way that the
elements which transmit the movement are always in the bisecting plane.
Joints, bolts, bushings and ball joints are self-aligning
elements which allow for the rotation between two
Standard conditions shafts or parts with no transfer of power or torque.
They feature highly adjusted tolerances, and with
MAXIGRAS 46 the exception of self-lubricated bushings, the same
A multi-purpose EP grease. Contains solid guidelines apply to the lubrication of these elements as
additives (MoS ). Recommended for the lubrication of for the lubrication of cardan and CV joints.
2
friction bushings operating in standard conditions.
NLGI 2* DIN KPF2K-20 ISO-L-XBCEB-2 -20ºC to +120ºC (+140ºC)
Multi-purpose use with high loads in standard conditions (up
to 120º C and 3000 rpm)
MAXIGRAS 110 EP/220
A EP grease with a high-viscosity oil base and stringy
additives, recommended for bolts and parts operating
at low to medium revolutions in a moist and dusty
environment with very high pressure. Suitable for manual
lubrication and automatic greasing systems using NLGI 2
consistency greases.
NLGI 2 DIN KP2N-30 ISO-L-XCDEB-2 -30ºC à +140ºC (+165ºC)
Multi-purpose use in standard conditions (up to 120º C
and 3000 rpm).
MAXIGRAS C42/3
Anhydro-calcium water-resistant grease.
NLGI 3 DIN M3G-20 ISO-L-XBBEA-2 -20ºC to +100ºC
Multi-purpose use in standard conditions
(up to 70º C and 3000 rpm).
* Available in NLGI consistencies 2 and 3
