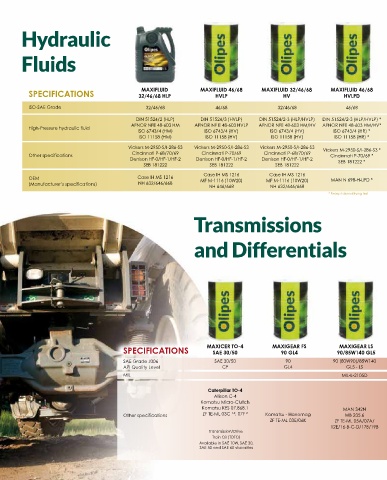

Page 26 - Olipes Offhighway
P. 26
Hydraulic
Fluids
MAXIFLUID
SPECIFICATIONS 32/46/68 HLP MAXIFLUID 46/68 MAXIFLUID 32/46/68 MAXIFLUID 46/68
HVLPD
HV
HVLP
ISO-SAE Grade 32/46/68 46/68 32/46/68 46/68
DIN 51524/2 (HLP) DIN 51524/3 (HVLP) DIN 51524/2-3 (HLP/HVLP) DIN 51524/2-3 (HLP/HVLP) *
AFNOR NFE 48-603 HM AFNOR NF E 48-603 HVLP AFNOR NFE 48-603 HM/HV AFNOR NFE 48-603 HM/HV*
High-Pressure hydraulic fluid
ISO 6743/4 (HM) ISO 6743/4 (HV) ISO 6743/4 (HV) ISO 6743/4 (HR) *
ISO 11158 (HM) ISO 11158 (HV) ISO 11158 (HV) ISO 11158 (HR) *
Vickers M-2950-S/I-286-S3 Vickers M-2950-S/I-286-S3 Vickers M-2950-S/I-286-S3 Vickers M-2950-S/I-286-S3 *
Other specifications Cincinnati P-68/70/69 Cincinnati P-70/69 Cincinnati P-68/70/69 Cincinnati P-70/69 *
Denison HF-0/HF-1/HF-2 Denison HF-0/HF-1/HF-2 Denison HF-0/HF-1/HF-2 SEB 181222 *
SEB 181222 SEB 181222 SEB 181222
Case IH MS 1216 Case IH MS 1216
OEM Case IH MS 1216 MF M-1116 (10W20) MF M-1116 (10W20) MAN N 698-H-LPD *
(Manufacturer’s specifications) NH 632/646/668
NH 646/668 NH 632/646/668
* Except demulsifying test
Transmissions
and Differentials
MAXIGEAR LS
SPECIFICATIONS MAXICER TO-4 MAXIGEAR FS 90/85W140 GL5
SAE 30/50
90 GL4
SAE Grade J306 SAE 30/50 90 90 (80W90)/85W140
API Quality Level CF GL4 GL5 - LS
MIL MIL-L-2105D
Caterpillar TO-4
Allison C-4
Komatsu Micro-Clutch
Komatsu KES 07.868.1 MAN 342N
1,2
Other specifications ZF TE-ML 03C , 07F 2 Komatsu - Hanomag MB 235.6
ZF TE-ML 03E/06K ZF TE-ML 05A/07A/
12E/16-B-C-D/17B/19B
Transmission/Drive
Train Oil (TDTO)
Available in SAE 10W, SAE 30,
SAE 50 and SAE 60 viscosities
